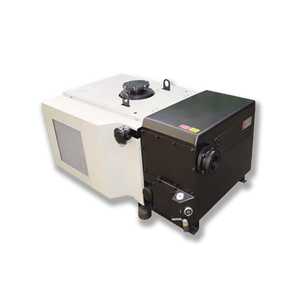

Dr.Vakuum V0630
Dr.Vakuum V0630
  • Load image into Gallery viewer, Dr.Vakuum V0630
  • Load image into Gallery viewer, Dr.Vakuum V0630

Dr.Vakuum V0630

Regular price
Sale price
Regular price
Sold out
Unit price
per

The largest model of our V series, oil lubricated rotary vane vacuum pumps family. It is the latest premium products we have been developing for years. Its special design and high-quality materials drive to be your smart solution for various application & industries. There are two configuration for this model:

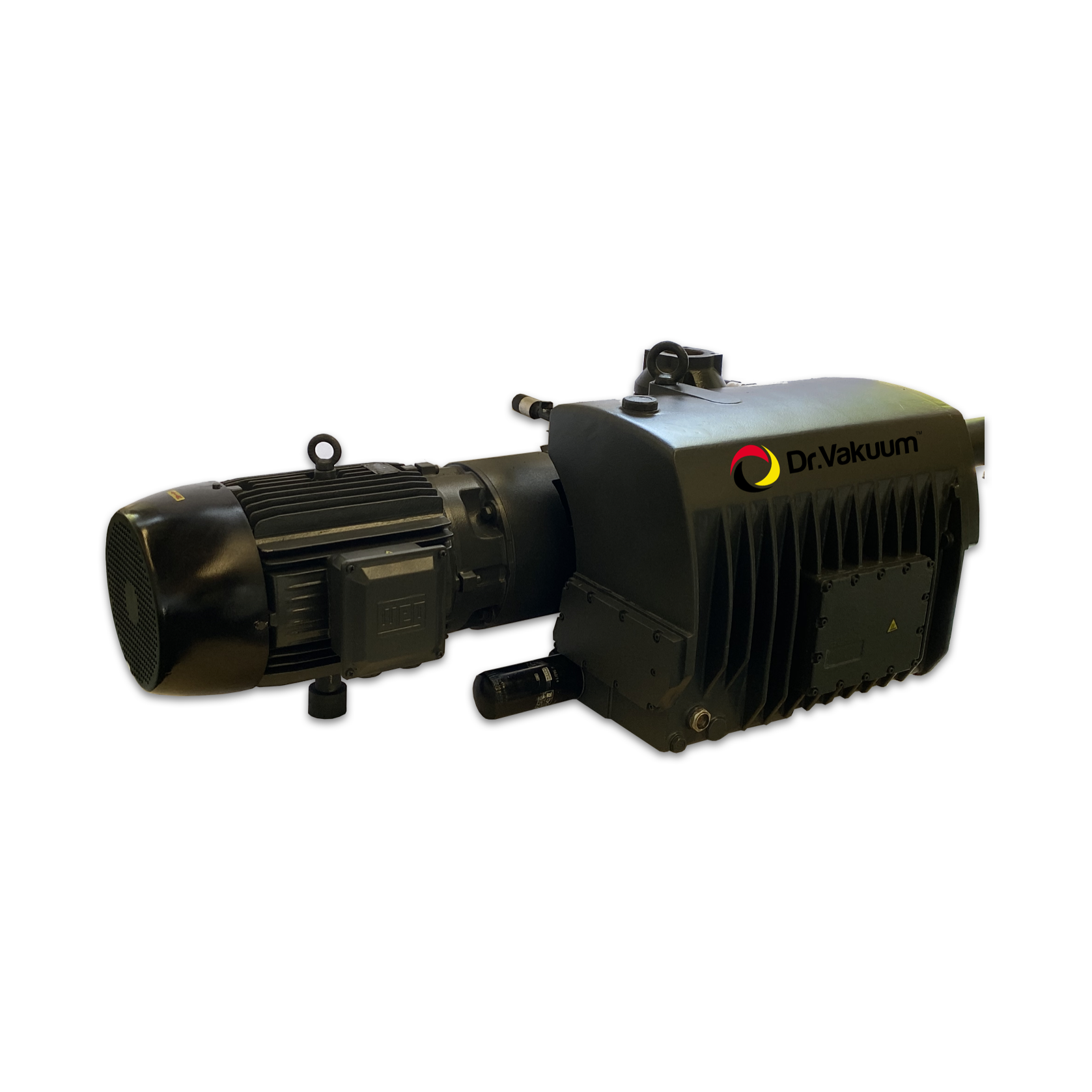

  • V0630-D: Direct-Drive construction.

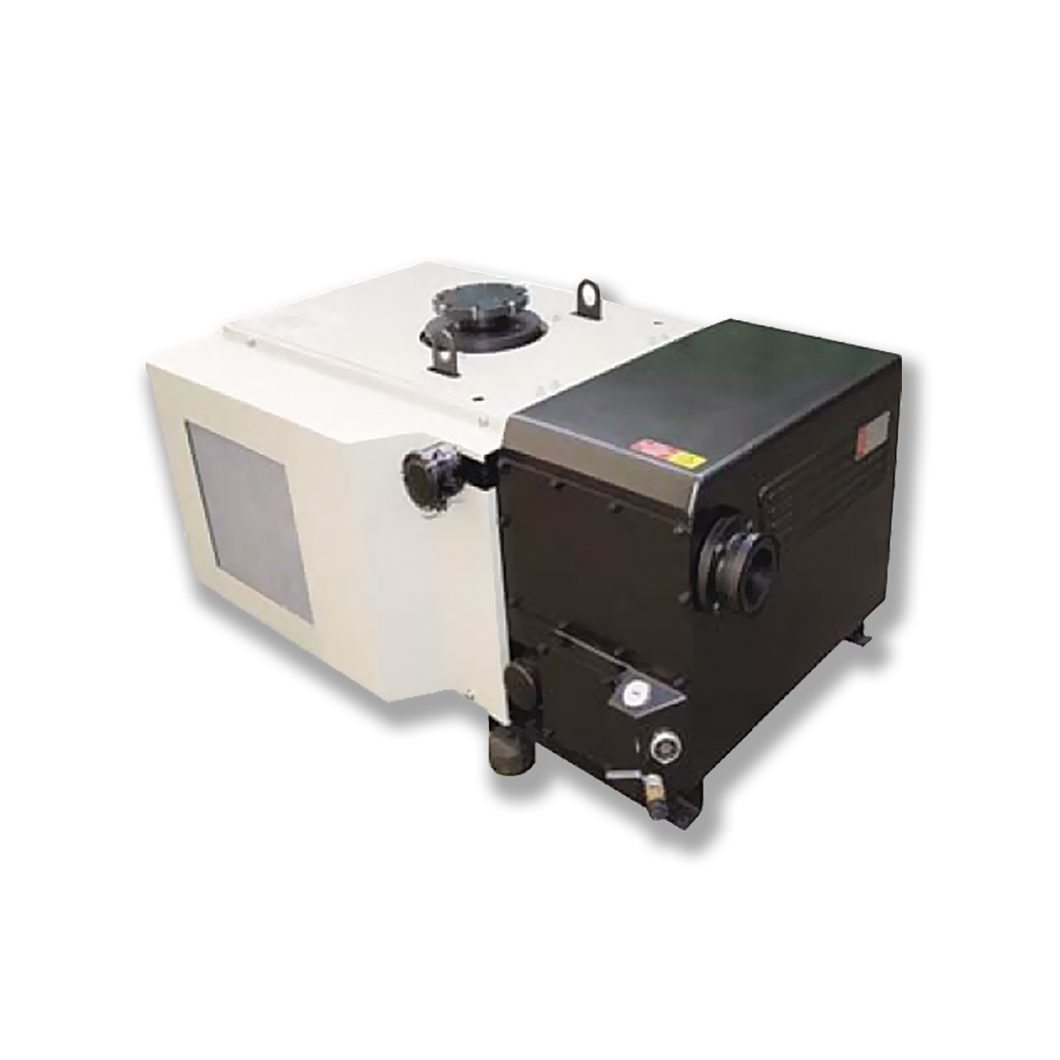

  • V0630-B: Belt-Drive construction

Dr.Vakuum V Series is our single-stage rotary vane vacuum pumpsThe robustness and operational reliability of oil lubricated rotary vane vacuum pumps have long made them the industry standard.

Industrial Standard
Our V series has been used by multiple global leading companies in their applications for over decades.

Efficient & Cost-Saving
Rotary vane technology has been continuously developed and optimized on the focus of the emphasis on operational reliability and efficiency.

Technical Data

Specification / Model
V0630-B
V0630-D
Unit
Nominal speed  @ 50 Hz 630
630
m3/h
Ultimate pressure (Gas ballast closed) 0.1 0.1 mbar
Ultimate pressure
 (Gas ballast open)
0.5 0.5
mbar
Motor power @ 50 Hz 17.5
15 Kw
Motor speed @ 50 Hz 825
980 rpm
Water vapor capacity 7.5 7.5 kg/h
Water vapor permitted pressure
40 40 kg/h
Noise level 78 78 dB(A)
Inlet connection DN100 3 inch
Outlet connection
DN100
3
inch
Inlet screen filtration mesh size
<1.5
<1.5
mm
Oil filling  24 25 Liters
Cooling Method Standard
Air-cooled
Air-cooled
-
Gross weight 670 550 Kg
Dimensions  1600 x 900 x 754 1720 x 880 x 730 L x W x H (mm)
