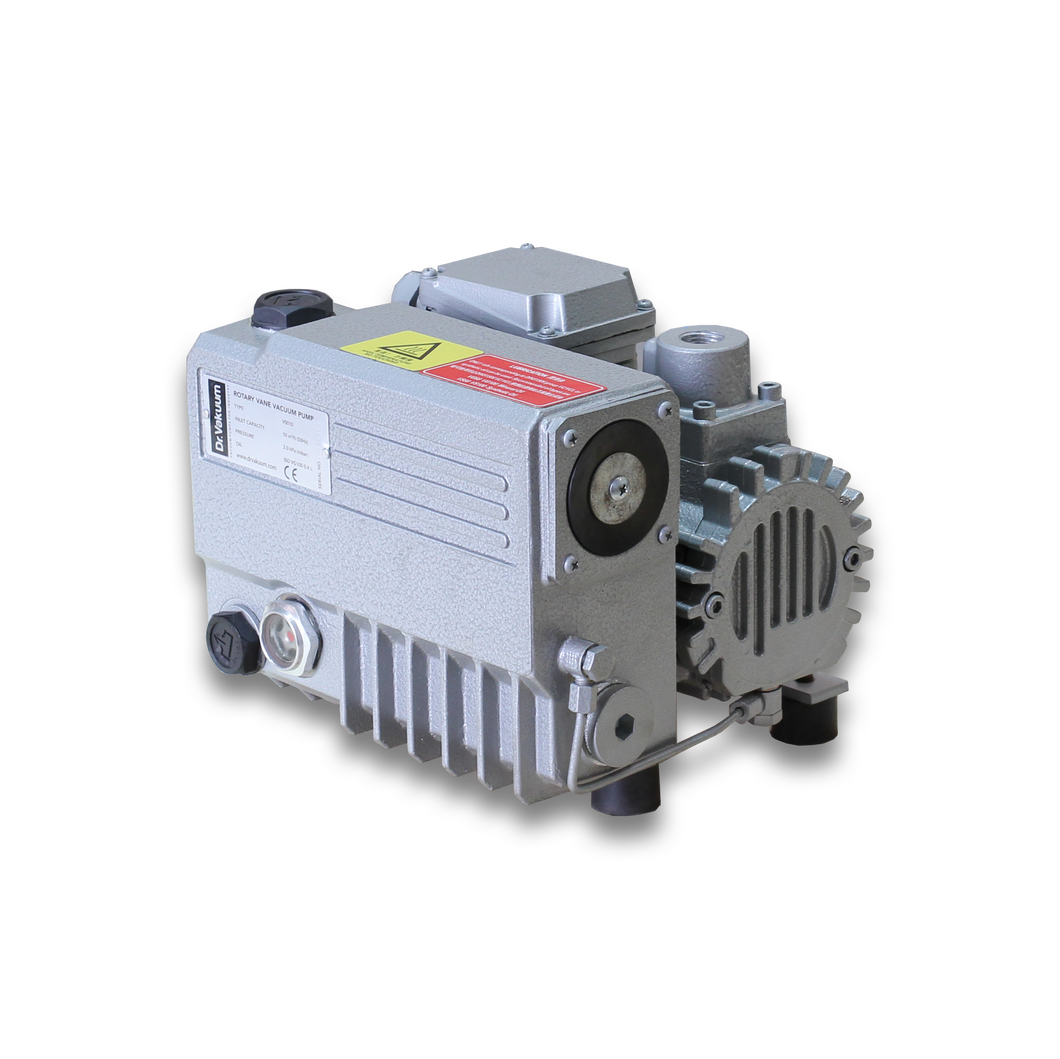

The smallest model of our V series, oil lubricated rotary vane vacuum pumps family. It is the latest premium products we have been developing for years. Its special design and high-quality materials drive to be your smart solution for various application & industries.
Dr.Vakuum V Series is our single-stage rotary vane vacuum pumps. The robustness and operational reliability of oil lubricated rotary vane vacuum pumps have long made them the industry standard.
Industrial Standard
Our V series has been used by multiple global leading companies in their applications for over decades.
Efficient & Cost-Saving
Rotary vane technology has been continuously developed and optimized on the focus of the emphasis on operational reliability and efficiency.
Technical Data
| Nominal speed @ 50, 60 Hz | 10, 12 | m3/h |
| Ultimate pressure | 1 | mbar |
| Motor power @ 50, 60 Hz | 0.55, 0.55 | Kw |
| Motor speed @ 50, 60 Hz | 2800, 3200 | rpm |
| Water vapor capacity @ 50 Hz | 0.5 | kg/h |
| Sound level @ 50 Hz | 64 | dB(A) |
| Inlet connection | G1/2" | inch |
| Oil filling | 0.4 | Liters |
| Gross weight | 16 | Kg |
| Dimensions | 308 x 215 x 207 | L x W x H (mm) |
Performance Curve
